NerdSEQ HYBRID TRACKER SEQUENCER

XOR Electronics

NerdSEQ HYBRID TRACKER SEQUENCER

NerdSEQ HYBRID TRACKER SEQUENCER

$925.00

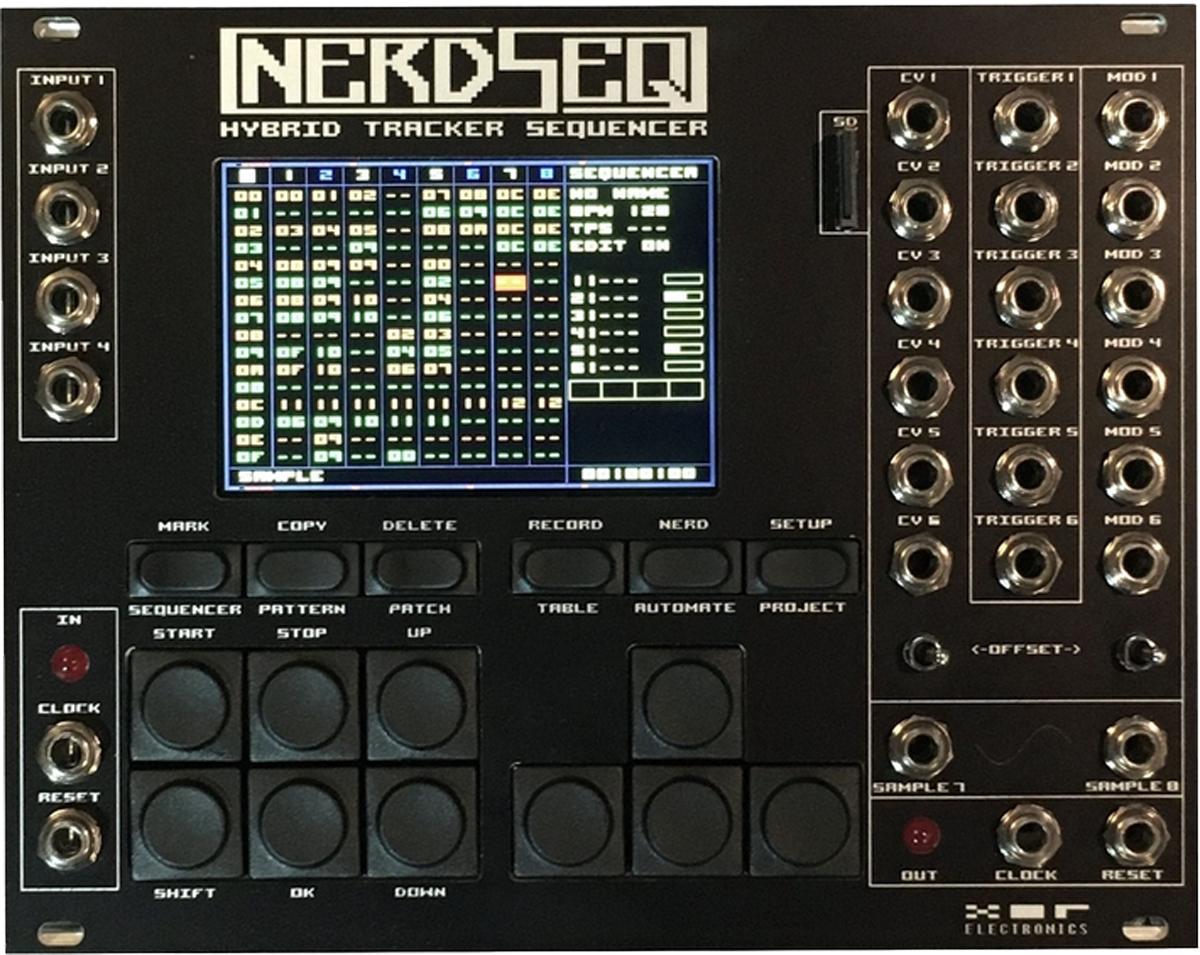

The Nerdseq is a tracker based cv and trigger sequencer module (32HP) for Eurorack systems.

It consists 6 tracks for the CV/Trigger/MOD generation of
18 outputs. 4 User assignable inputs, clock and reset in/outputs and 2 x 2 audio tracks to sequence samples and the integrated oscillators and FM synthesis. As the worlds first hardware tracker it allows straightforward and fast editing together with nice live playing abilities.

Specifications

Power: ~150mA(+12V), ~32mA (-12V), 0mA(5V)
Hardware:
– 32HP, 2.5cm deep
– 3.5″ Colour Graphics IPS display with a resolution of 480 x 320 pixels
– 10 full size and 6 half size buttons
– 28 mini-Jack (mono), 4 CV Inputs (range 0..10 Volt) , 12 CV
outputs (Range -5 Volt /+5 Volt or 0 Volt / +10 Volt), 6 Trigger/Gate Outputs (5 Volt),
2 Sample outputs (-5 Volt/+5 Volt), Clock + Reset In/Output (5 Volt)
– microSD connector accessible on frontpanel
– 2 Expander ports for Midi and up to 4 extensions

Firmware:

– 8 Tracks -> 6 CV/Trigger/Gate, 2×2 sample tracks for 2 audio outputs
– 239 Sequencer rows
– 175 Patterns with each 64 (and less) Steps
– flexible and comfortable arrangement of patterns
– Capable for advanced song arrangements as well as live access to patterns
– Euclidean Rhythm input for Trigger Expander
– 176 Patches
– 32 Tables with 16 (and less) steps
– 8 Automation slots (LFO/Modulations)
– 8 ADSR Envelopes
– 12 Sample slots
– Sample support for RAW 8 bit mono and WAV 8/16 bit, Mono/Stereo
– 4 Oscillators with Sine, Triangle, Sawtooth, Pulse, Noise Waveforms
– 4 Operator FM Synthesis
– Projects as many as the SD card can hold
– Launchpad Integration
– With expansions up to 64 additional outputs sequenceable
– Midi multitrack / multichannel polyphonic sequencing with all midi features and additional modulations
…..and much more….
