Erica Synths

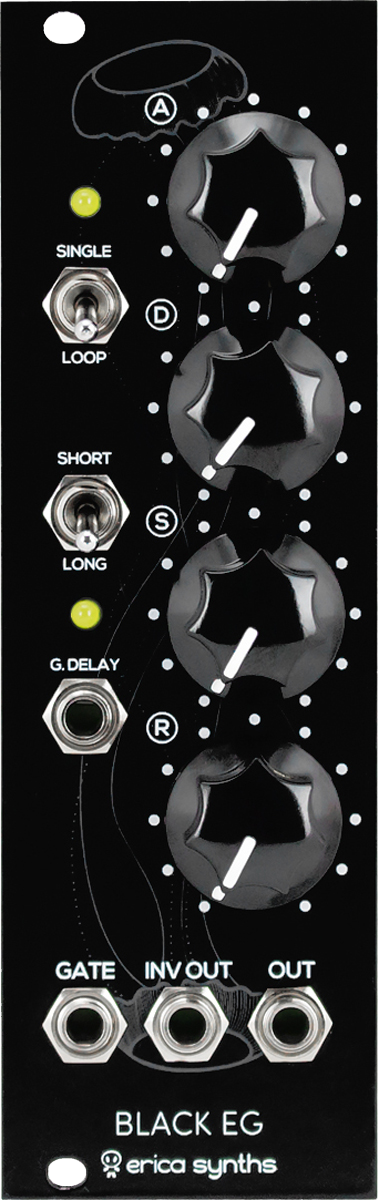

Black EG - Envelope Generator

Description

Erica Synths Black Envelope Generator is a compact, fully analogue envelope generator with some cool bonus features like gated loop and gate delay for nice acid basslines and veeeerrryyy slow drones.

We introduced a distinct looping feature (when the gate patchcable is patched, looping starts on gate on) and Gate Delay – the module outputs delayed gate signal after Attack stage. Chain up several (4-5) Envelope Generators, each with delayed gate to create evolving polyphonic synth-like pads!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage.

Features

  • Full ADSR envelope
  • Short/Long envelope switch
  • Direct and inverted envelope outputs
  • Gated and independent looping modes
  • Gate delay (after Attack stage) output
  • Skiff-friendly design

Specifications

  • Width: 8HP
  • Depth: 25mm
  • Power: 25mA@+12V, 15mA@-12V

$151.00

Tax Excluded for International orders. This price does NOT include Tax
