Make Noise STO

Make Noise

Make Noise STO

Make Noise STO

$315.00

The STO music synthesizer module is a compact Voltage Controlled Oscillator designed for generating SINE waves, Variable wave-SHAPEs, SUB-Octaves, Oscillator SYNC and Linear FM in the analog domain. The Sub-Timbral Oscillator is the more subtle and melodic friend to the DPO's complex harmonic lattice.

features

  • Triangle Core with outputs for SINE, SUB and Variable SHAPE

  • Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts

  • Linear FM input with Depth control

-EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences

  • SUB-Oscillator yields max bass

  • S-Gate input for gating or sync of SUB-Osc. independent of other outputs

  • Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds

  • Pairs well with the MMG or Optomix

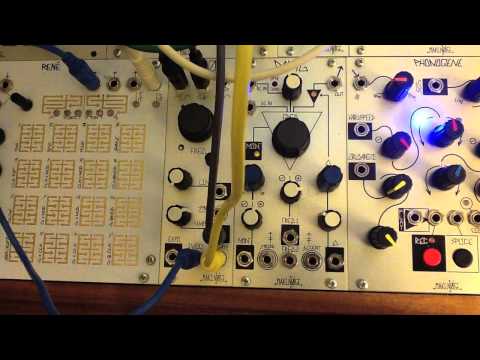

video

specifications

  • Width: 8hp
  • Max Depth: 30mm
  • Power:
    40mA @ +12V
    30mA @ -12V
