Make Noise

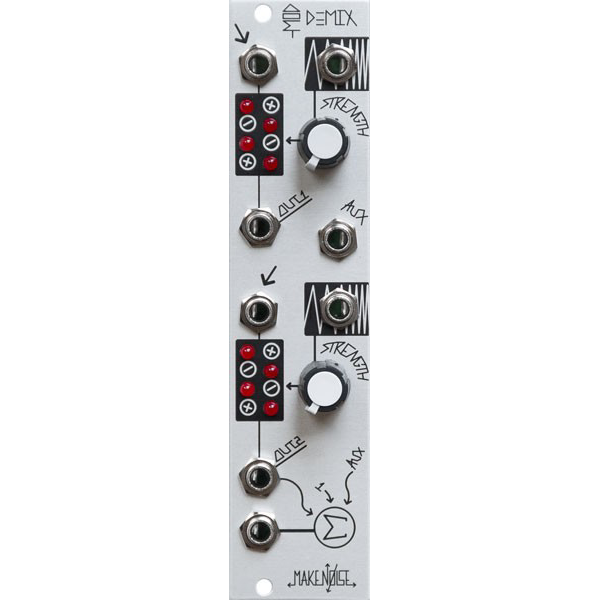

modDemix

Description

The modDemix music synthesizer module features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

Features

  • Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA
  • STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control, setting Level. With signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation
  • Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
  • AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes
  • Part of a decentralized mix console integrated throughout the system along with Optomix, X-PAN, Dynamix, and RxMx
  • Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod
  • MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module

Specifications

  • Width: 6hp
  • Max Depth (incl. power cable): 32mm
  • Power: 30mA@ +12V 30mA @ -12V

$142.00
