Jolin

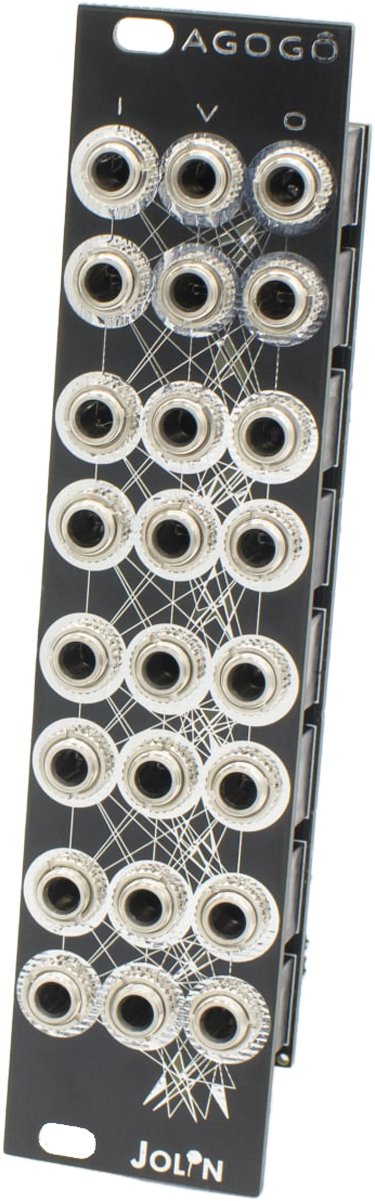

AGOGO Octal LPG

Description

AGOGO is an octal analogue vactrol-based low pass gate and mixer in a cascade configuration.

Each one of its input, CV and output is normalized and buffered to the next one:
it can be used as a multiplier and a mixer for both audio and CV.

Features

  • 8 independent vactrol LPGs.
  • Classic logarithmic vactrol curve and latency.
  • Two LPG flavours: brighter – blue LEDs – and darker – red LEDs.
  • Open design signal path: break the normalization at any point to change its configuration.
  • Input and CV are normalled and they flow top to bottom when no jack is inserted.
  • Outputs are summed to create sub-mix on the go.
  • Unlimited units can be chained together.
  • Works with audio and CV sources.
  • “Whatever” power connector a.k.a. don’t mind the polarity

Specifications

  • Width: 6HP
  • Depth: 28mm
  • Power: 150mA +12V • 90mA -12V

$299.00

Tax Excluded for International orders. This price does NOT include Tax
