Intellijel

uVCF

Description

Punchy, clean and precise. The perfect building block to form the basis of more complex patches. Explore new sounds through the dual modulation inputs and low pass, high pass and band pass outputs. Self patch to get even more intersting filter types. Adjust the Q for a sharp howl or use it as a sine VCO. Big sound in a small space.

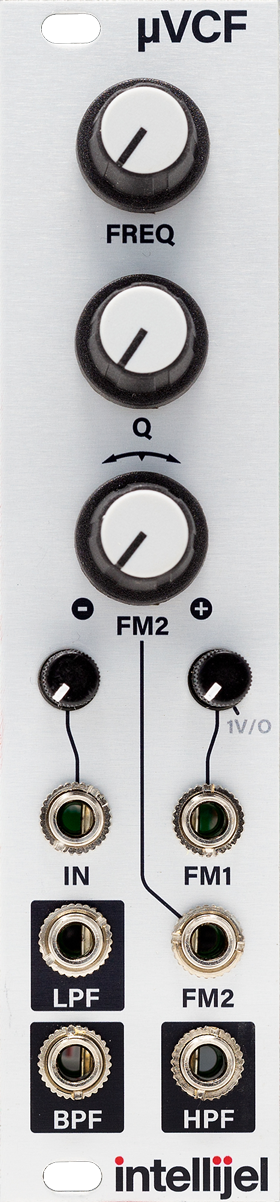

Introducing the µVCF state variable filter, another great David Dixon filter design. It is a very clean and precise filter that also doubles as an excellent sine VCO.

It responds excellently to FM and the small size makes it a nice choice for smaller system.

Features

  • Low pass (LPF) 2-pole, high pass (HPF) 2-pole and bandpass outputs (BPF) 1-pole.
  • FM1 input acts as 1V/Oct when full CW. Tracks very well over 4+ octaves
  • FM2 input has a bipolar attenuator
  • At full Q you get very low distortion sinewaves with a range of 2Hz to 20Khz

Specifications

  • Width: 6HP
  • Max Depth: 21mm
  • Power: 25mA @+12V , 24mA @-12V , 0mA @+5V

$157.00

Tax Excluded for International orders. This price does NOT include Tax
