Intellijel

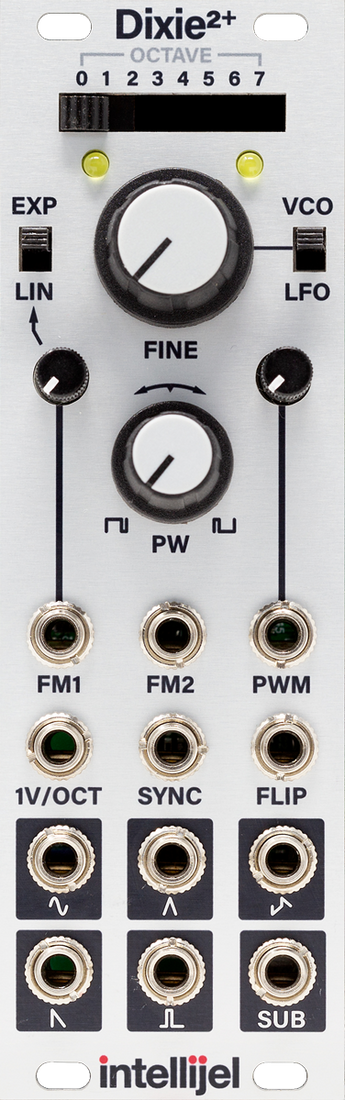

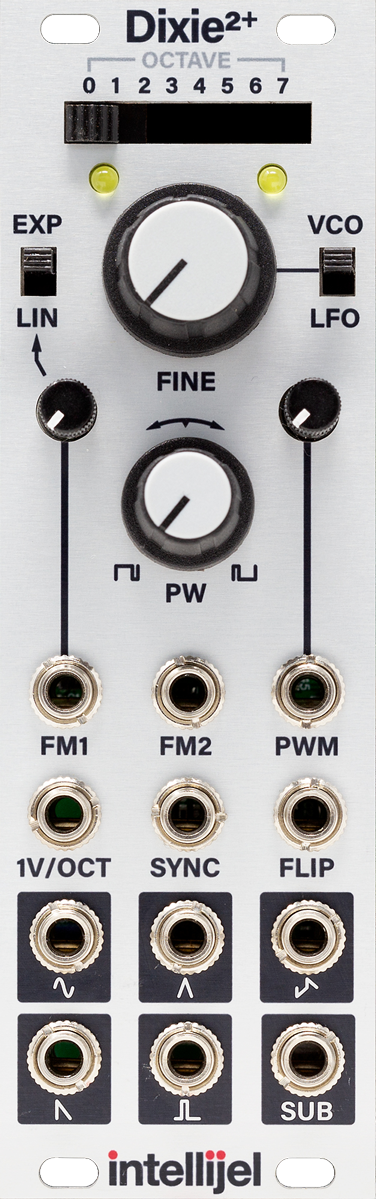

Dixie2+

Description

The beating heart(s) of your rack, the analog oscillator. If the Dixie2's six waveform outputs don't offer enough shapes for you, the PWM, sync, and FM inputs have you covered. Unique to the Dixie2+ is PWM control, exponential FM, and an Octave switch for quick and precise musical tuning. Great in pairs, two hearts are better than one.

The Dixie 2+ is a larger variant of the classic Dixie 2. Using the same great triangle core oscillator, it adds a number of features to make it even more versatile with only a modest increase in size. The Dixie 2+ makes a perfect primary oscillator for a modular system, or a great companion for the Rubicon 2.

Features

  • 8-position octave switch for quick setting of course tuning.
  • Fine tuning knob that turns to a coarse knob when in LFO mode.
  • Dual FM inputs, with FM1 attenuator and switch to select between exponential and linear mode.
  • Pulse width control with attenuator.
  • Reset to 0 V hard sync input, ideal for percussive sounds or modulation.
  • Flip sync circuit similar to but improved from the Dixie II.
  • 6 waveform outputs: sine, triangle, zigzag, saw, pulse and suboctave.

Specifications

  • Width: 8HP
  • Max Depth: 40mm
  • Power: 60mA @+12V , 70mA @-12V

$219.00

Tax Excluded for International orders. This price does NOT include Tax
