Intellijel 7U Performance Case 104hp (Silver) Intellijel 7U Performance Case 104hp (Silver) Intellijel 7U Performance Case 104hp (Silver) Intellijel 7U Performance Case 104hp (Silver) Intellijel 7U Performance Case 104hp (Silver)

Intellijel

Intellijel 7U Performance Case 104hp (Silver)

Intellijel 7U Performance Case 104hp (Silver)

$1,150.00

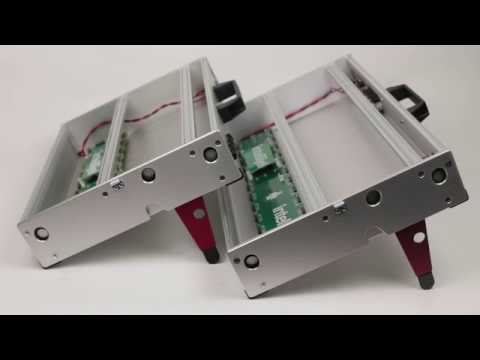

Studio, cafe, stage, floor, coffee table—the 7U Performance case doesn't care where you play with it. Two 3U rows house and power all the modules you love (or one day hope to love), while the additional 1U row accommodates an extensive selection of specialized utility modules. Power, audio and MIDI/USB jacks on the back handle all the necessary inputs and outputs, ensuring all that rack space remains free for the "fun" modules. The lid has enough clearance to keep your system patched in transit, and two cases can be stacked with a set of joiners.

Features

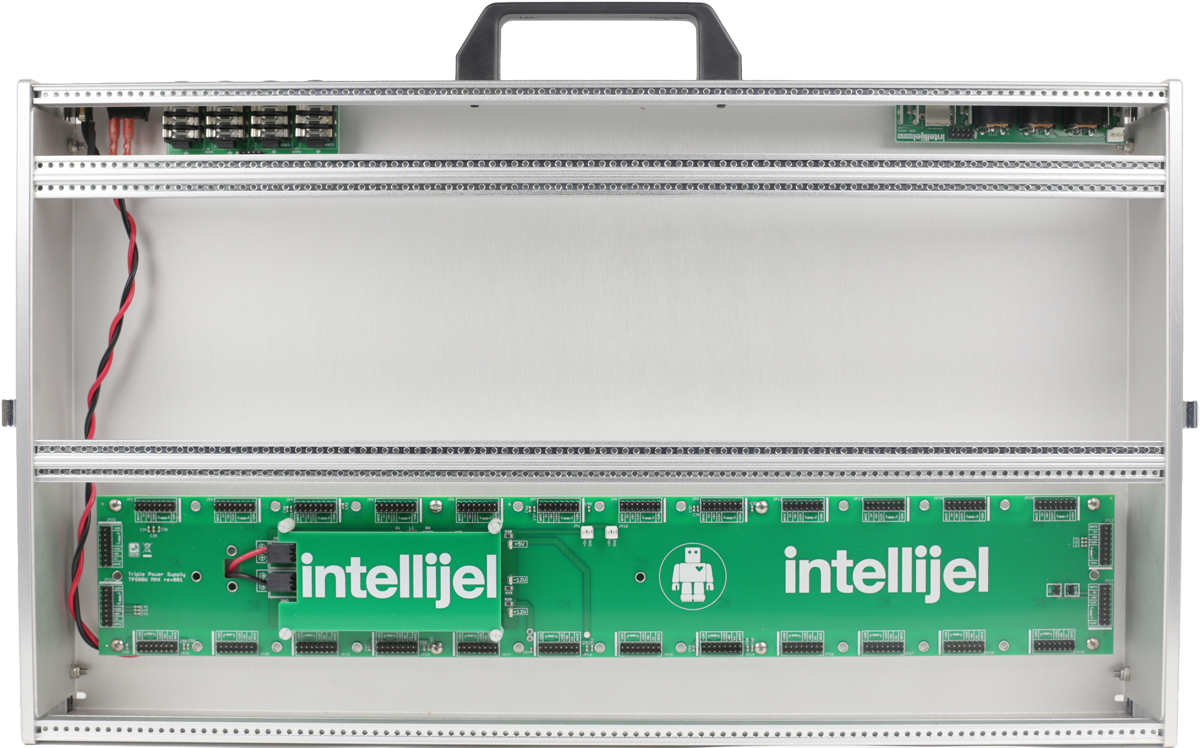

  • Two 104 hp rows (6U) of Eurorack module space.
  • One 104 hp row for Intellijel 1U modules.
  • Threaded M3 strips for mounting modules.
  • 104HP cases feature the larger TPS80W MAX which can accommodate 28 modules.
  • New in 2019: All 7U case power supplies now ship with shrouded headers.
  • Includes: Lid, Meanwell AC/DC adapter, and 3FT North American IEC power cable.

Construction

  • Solid plastic carrying handle.
  • Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
  • Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
  • Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together using a pair of 7U Joiner Plates.

Rear panel

  • Four 1/4″ audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
  • MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
  • USB port that connects to the µMIDI 1U and other future modules.
  • Rocker switch and barrel plug for power entry.

Includes

  • Lid
  • Meanwell AC/DC adapter
  • 3FT North American IEC power cable
