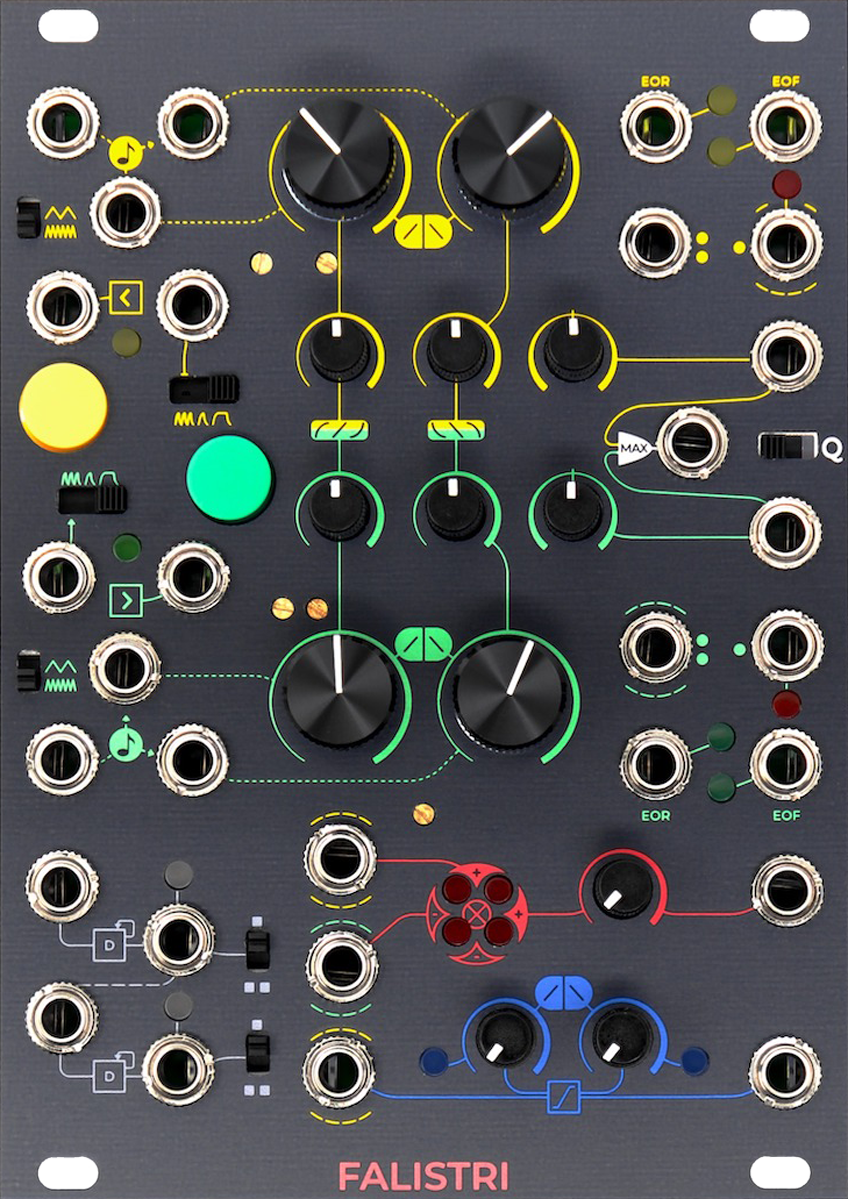

The FALISTRI is a fully analog multipurpose movement manager designed to generate and edit voltages to easily accomplish any patch.

The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed by a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.

Key Features

• two generators as envelopes or oscillators
• independent shape per stage
• independent time from shape
• quadrature mode for both envelope or oscillator mode
• manual buttons for realtime performance and ease of interaction
• unipolar bipolar and attenuverted output
• EOR and EOF digital outputs
• two cascaded flip-flop for sub oscillators, clock dividers or more rhythmical combinations
• DC-coupled four quadrant multiplier usable for AM RM or as VCA
• slew limiter with separated rise and fall
• analog design

Size 18HP

Depth 38mm

Power Requirements

• 170 mA +12V idle
• 170 mA -12V idle
