Expert Sleepers

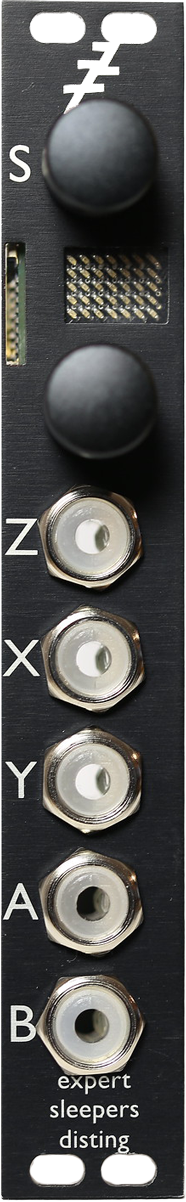

Disting Mk4

Description

The disting is a many-in-1 multifunction module, offering a variety of CV and audio processes, including a selection of oscillators (LFOs/VCOs). All algorithms have two high-precision inputs and outputs, and a third control input, exposed on a front panel knob and a CV input.

The disting is also a sample (WAV) file and MIDI file player, with a variety of options for sample triggering, playback speed etc.

Features

  • Precision Adder with integer voltage offsets
  • Four Quadrant Multiplier with integer multiply/divide
  • Full-wave Rectifier
  • Minimum/maximum
  • Linear/Exponential Converter
  • Quantizer with selectable scales
  • Comparator with adjustable hysteresis
  • Dual Waveshaper wavefolder and triangle-to-sine shaper
  • Sample and Hold with noise source and adjustable slew rate
  • Slew Rate Limiter with linear and exponential slew
  • Pitch and Envelope Tracker
  • Clockable Delay/Echo
  • LFO with through zero frequency control and waveshaping
  • Clockable LFO with multiply/divide and waveshaping
  • VCO with linear FM sine and saw outputs
  • VCO with waveshaping saw/triangle and pulse outputs
  • Plus so many more

Specifications

  • Width: 4hp
  • Depth: 42mm
  • Power: 51mA on the +12V rail, 19mA on the -12V rail

$187.00

Tax Excluded for International orders. This price does NOT include Tax
