4ms Ensemble Oscillator 4ms Ensemble Oscillator 4ms Ensemble Oscillator

4ms

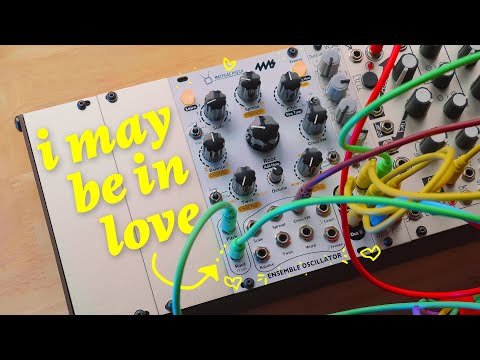

4ms Ensemble Oscillator

4ms Ensemble Oscillator

$545.00

NEW STOCK ARRIVING APPROX 12th August

4ms have revealed their Ensemble Oscillator. A unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures.


The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.



Electrical and Mechanical Specifications

  • 16HP Eurorack format module
  • 0.98” (25mm) maximum depth (including power cable)
  • 10-pin to 16-pin Eurorack power header
  • Power consumption
    • +12V: 114mA maximum
    • -12V: 45mA maximum
    • +5V: 0mA (not used)
  • Audio outputs
    • Frequency range: 0Hz (DC) - 20kHz
    • Typical amplitude: 10Vpp
    • Maximum amplitude: 18.5Vpp
  • 1V/oct inputs (Root and Pitch)
    • Voltage range: -2V to +6V (8 octave range)
    • Factory calibrated to 1.00V/oct
    • Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
  • CV inputs (other than 1V/oct)
    • Voltage range: -5V to +5V
  • Gate inputs
    • Trigger threshold: 2.5V
  • User memory (non-volatile)
    • Scale slots: 30
    • Shift feature settings
    • 1V/oct calibration settings
