Cre8audio

Cellz

Description

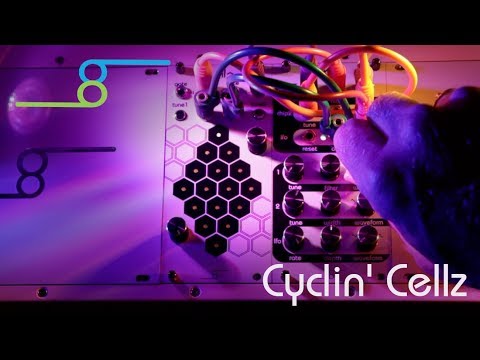

Cellz - Programmable CV touch pad

If we were being technical we'd talk in corporate speak and say "Cellz is a dual unipolar control voltage generator and that each of the 16 touch sensitive pads can be “fed” two 12bit values (semi-tone quantized or free scale), ranging from 0V to 10V." But really it's just simply a funky module you can use as a controller or a wacky sequencer.

Features

  • 0-10V voltage range output 1
  • 0-10V voltage range output 2
  • Minimum voltage required to set LFO triggers 1/2 high = 0.8V

Specifications

  • Width: 12hp
  • Depth: 30mm
  • Power: 2.5mA power draw when running +12V rail 27mA power draw when running +5V rail 1.5mA power draw when running -12V

$110.00

Tax Excluded for International orders. This price does NOT include Tax
