TipTop Audio

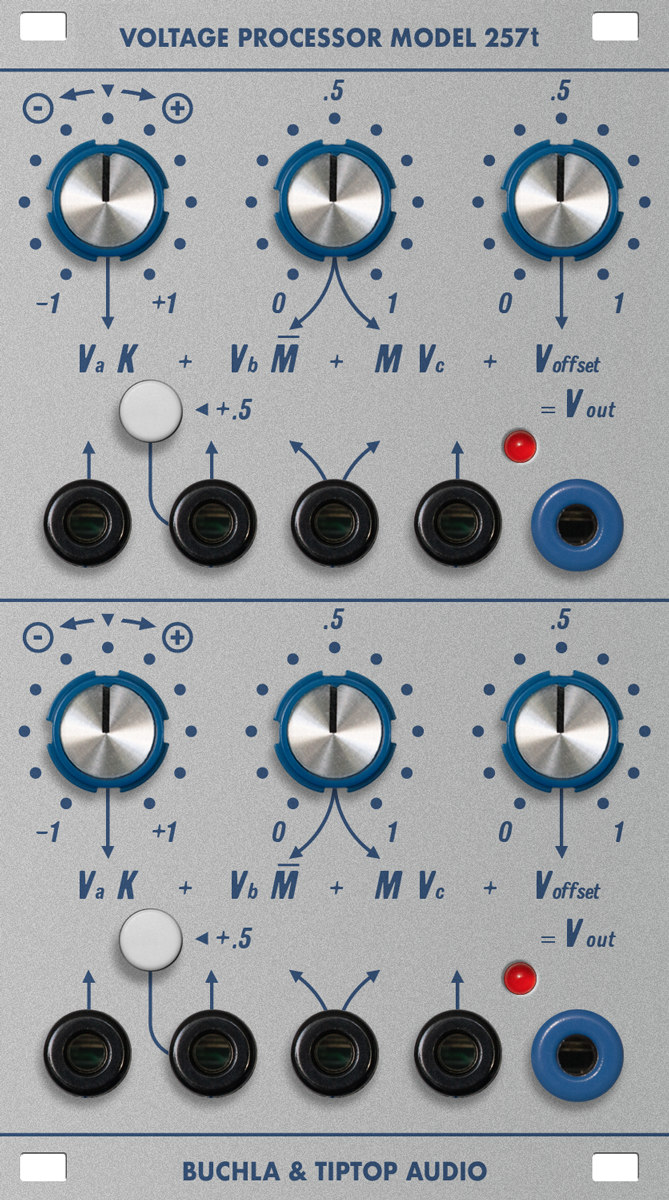

Buchla 257t Dual Voltage Processor

Description

TipTop Audio has teamed up with Buchla to revive Don Buchla’s classic 200 series modules, converting them into Eurorack format.

The 257t is a Dual Voltage Processor

Features

  • Attenuverter
  • - Va is the voltage input a for attenuverter (left jack on the panel)
  • - K knob can scale the incoming Va voltage either positively or negatively
  • Crossfader
  • - Vb is the voltage input b for the left side of the crossfader (second jack from the left)
  • - +.5 switch adds 5 volts to the input of Vb
  • - Vc is the voltage input c for the right side of the crossfader (fourth jack from the left)
  • - M scales Vb from 1 to 0 based on the position of M knob
  • - M scales Vc from 0 to 1 based on the position of M knob
  • - The middle CV input at M/M can crossfade between Vb and Vc (third jack from the left)
  • - The M knob and M CV added together to control crossfade position
  • Offset
  • - Voset Adds 0 - 10 volts to any combination of Va + Vb + Vc
  • Output
  • - Vout is the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)

Specifications

  • Width: 14HP
  • Max Depth: 25mm
