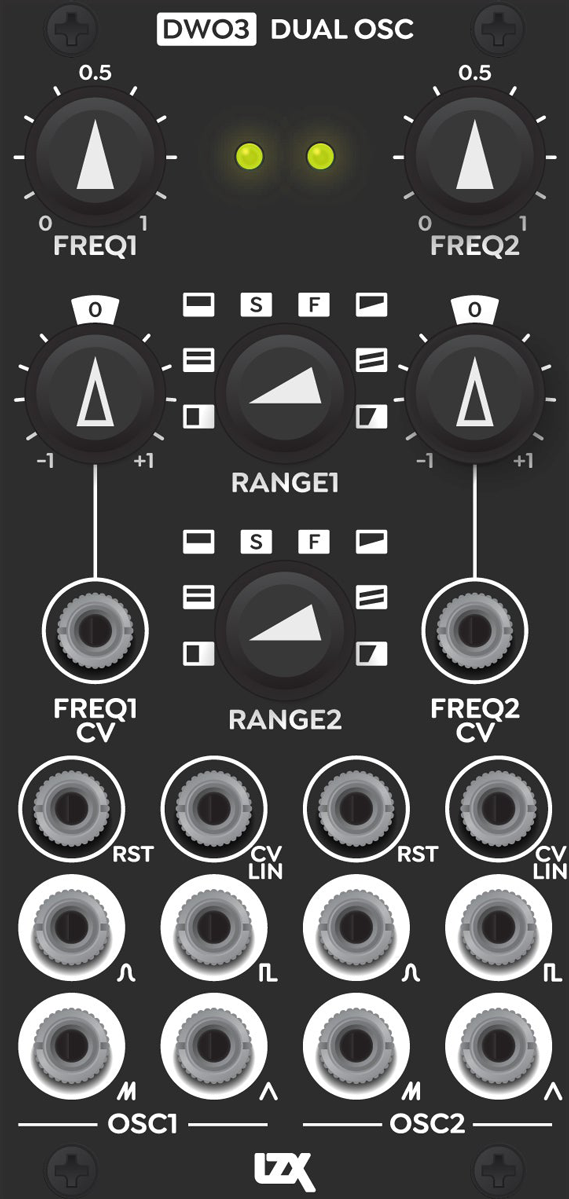

DWO3 Dual Oscillator

Description

DWO3 Dual Oscillator is a dual utility VCO equally at home as a video pattern source as it is as a provider of motion and movement.

  • Two identical discrete analogue triangle core VCOs with frequencies ranging from 2MHz down to several seconds.
  • Classic wave shapes for video synthesis patternmaking: Square, Sine, Parabola, Double Ramp, Triangle.
  • Eight frequency range / video sync modes: Locked Horizontal, Locked Upper Vertical, Locked Lower Vertical, Seconds, Frames, Free Lower Vertical, Free Upper Vertical, Free Horizontal.
  • Exponential CV input covers a 100:1 tuning ratio for each frequency range.
  • External clock inputs can be used to reset the phase while in locked ranges, or as a gated reset in unlocked ranges.



Features

  • Long lifespan pots, jacks and mechanical switches.
  • Active switching and gain control of the entire signal path.
  • Integrated ultra low noise power supplies.
  • Powered via 12V DC barrel or EuroRack power header.
  • Mounting depth 42mm max, with either power option installed.

Specifications

  • Width: 12hp
  • Max Depth: 42mm

Pre Order Info

ETA: Early Feb

$799.00
