LZX Industries

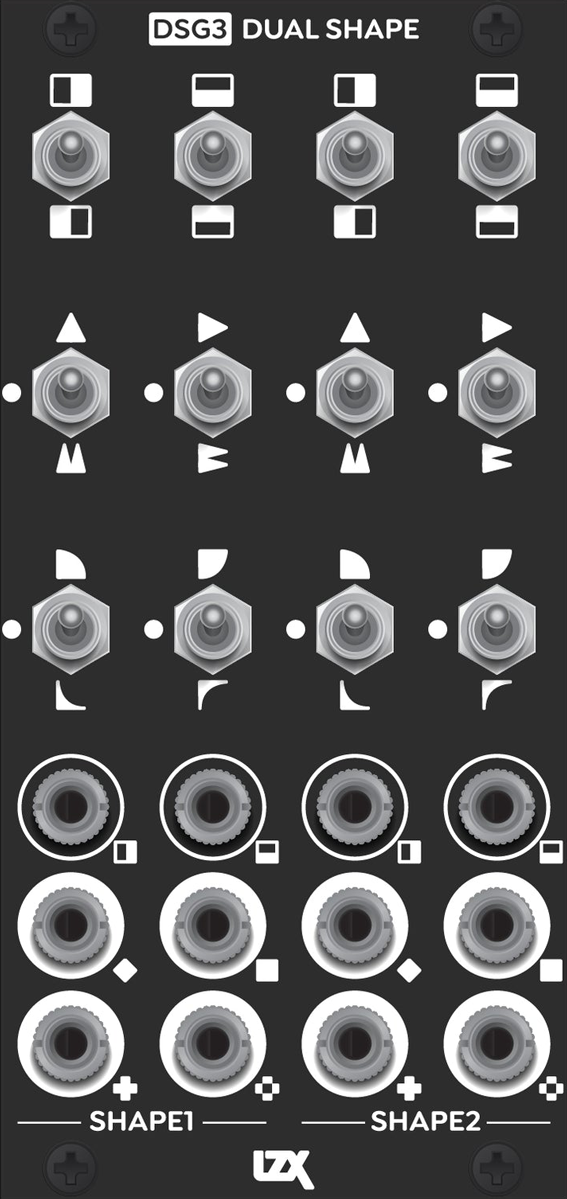

DSG3 Dual Shape Generator

Description

DSG3 Dual Shape Generator makes two shapes using a laundry list of powerful wave shaping functions.

  • Two auto-calibrating HD/SD ramp generators
  • Four inverters
  • Eight frequency doublers / full wave rectifiers
  • Four exponential wave shapers
  • Four logarithmic wave shapers
  • Two minimum functions
  • Two maximum functions
  • Two absolute value functions
  • Two summing amplifiers

Features

  • Long lifespan pots, jacks and mechanical switches.
  • Active switching and gain control of the entire signal path.
  • Toggle switches latched to vertical refresh.
  • Integrated ultra low noise power supplies.
  • Powered via 12V DC barrel or EuroRack power header.
  • Mounting depth 42mm max, with either power option installed.

Specifications

  • Width: 12HP
  • Max Depth: 42mm

$799.00
