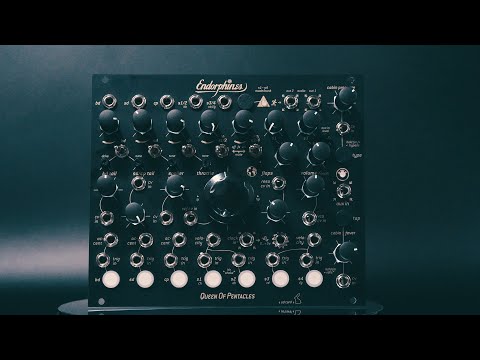

Queen of Pentacles


Queen of Pentacles is a 7 voice hybrid drum kit

The new Queen of Pentacles covers the range of Dance/EDM/Techno musicstyles and is inspired by the famous TR-909. Endorphin.es did it in a smart way. Check out the features: There are 7 sounds in the drum kit. 3 drums are analogue – bass drum, snare drum and clap. These 3 are generated analoguefor the following reason: each sound has its own binary noise generator andreally – each time they are triggered the flavor is unique –they simply neverrepeat. At the same time they don’t phase out each other as in the original909, which is great – for example in the situation when reinforcing the clap on2 nd and 4 th with an additional beat of the snare. The other 4 drums are sample-based. Just .wav files playback directly from a microSD card with additional volume envelope, decay and pitch control. Those are simple modifiers but help you to shape the sounds played as one-shots.


  • Analogue-based: bass drum, snare drum and clap
  • 4 sample-based drums (e.g. hi-hats, ride and crash cymbal – or simply use your own samples via SD card)
  • Zero-latency sample playback directly from SD card
  • Hybrid analog sound generation: 3x band-limited LSRF binary noise generators with spectrum animation, injected into discrete analog circuits
  • On-board effect processor with 2 banks consisting of 16 effects in total, including additional auxiliary input and firmware update over audio
  • Master isolator-style LP/HP filter with VCA control and saturator booster
  • Drums that make you dance: Fit all music styles of music – specifically tuned for EDM and Techno Factory sample banks by Nicolas Bougaïeff (Mute, Novamute) including processed custom sampled Paiste 602 cymbals


  • Power: 120 mA +12V / 15 mA -12V / 0 mA 5V
  • Width: 6HP
  • Depth: 30mm
